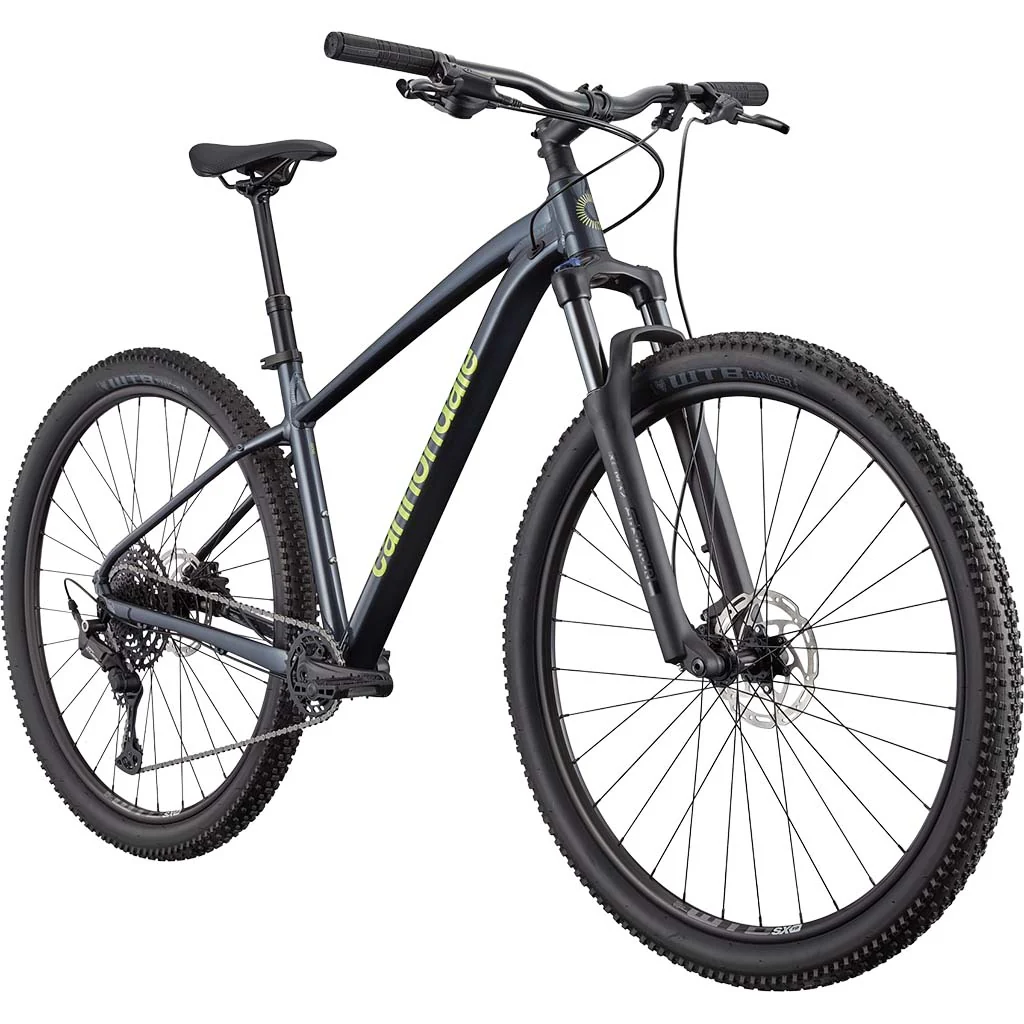

Trail 1

The Cannondale Trail 1 blends Cannondale’s 50 years of alloy expertise with modern trail capability. The SmartForm C3 alloy frame delivers a ride that’s light and responsive, while the SR Suntour XCM32 fork with 100mm travel (80mm on XS and Small sizes) takes care of the bumps so you can focus on the fun. Shimano’s CUES 10-speed drivetrain makes shifting smooth and reliable, and Tektro hydraulic disc brakes bring confidence to every descent. With a 130mm dropper post for instant seat adjustments, Trail 1 is proof that decades of innovation can deliver first-class performance, one ride at a time.

• Suggested Use
  • All-Mountain/Trail
• Frame
  • Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount port, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)
• Fork
  • SR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5")
• Handlebars
  • Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
• Brakes
  • Tektro M275 hydraulic disc, 160/160mm rotors
• Derailleur
  • Rear: Shimano CUES U6000
• Shift Levers
  • Shimano CUES U6000, 10-speed
• Crankset
  • Prowheel, Charm 30T
• Bottom Bracket
  • ProWheel, square taper
• Chain
  • KMC X10, 10-speed
• Cassette
  • Shimano CUES, 11-48, 10-speed
• Wheels
  • Rims: WTB SX19, 32h
  • Hubs:
    • Front: Shimano TC500, 15x110mm
    • Rear: Shimano TC500, 12x142mm
• Tires
  • Trail Boss 27.5x2.25" (XS,S) / 29x2.25" (M, L, XL) Comp, 30 TPI
• Saddle
  • Cannondale Trail
• Seatpost
  • JD Dropper, internal routing, 31.6, 130mm
