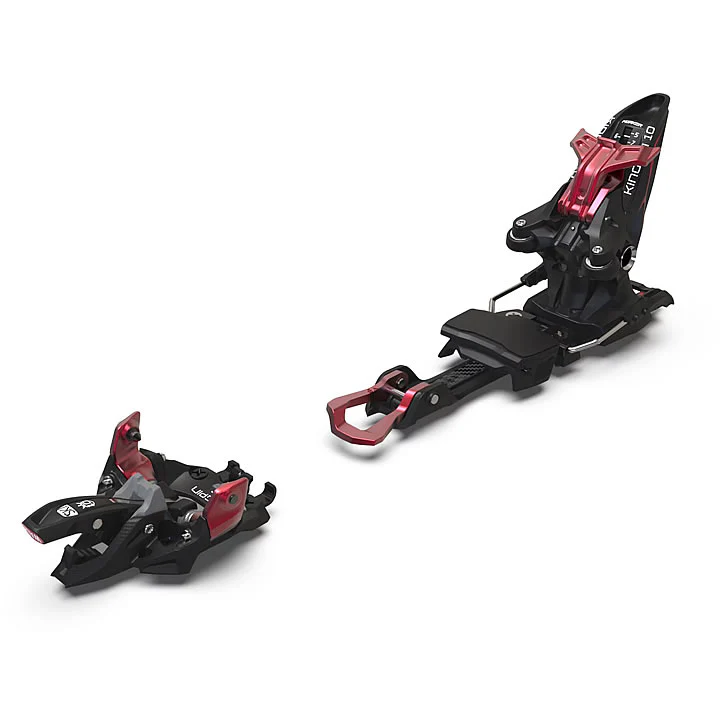

Marker Kingpin 10 Alpine Touring Ski Bindings 2024

The legendary Marker Kingpin 10 Alpine Touring Ski Binding sets the benchmark in downhill-oriented performance pin bindings. It combines the lightweight ISI pin toe piece with an alpine heel piece including 0°/7°/13° climbing aid, which delivers outstanding power transmission and ski control on descents and minimizes the likelihood of a false release while making it very easy to walk on any terrain. The binding is therefore perfect for ambitious backcountry and freeride touring enthusiasts. A very stiff, carbon-reinforced front with an ISI toe piece makes the binding easier to step into, as a wide footprint with integrated stop automatically positions and aligns your boot. Kinematically optimized pin levers then allow the pins to snap shut with just a gentle push. The wide hole pattern and XXL power transmitters deliver the ultimate in direct power transmission for the utmost control and fun on the descent.

• Construction
  • Kingpin Step-in Heel
    • The revolutionary heel construction for the Pin Technology bindings features wide sole contact points to deliver the kind of direct, efficient power transfer more frequently seen in alpine bindings. The KingPin heel is also many times safer than traditional Pin Technology bindings.
  • Climbing Aids Kingpin
    • The climbing aid offers two positions with 7° and 13° which can easily be accessed with the ski pole, even in an unstable standing position. Integrated elastomer paddings dampen the impact reducing the irritating traditional "clack" and allow more comfortable hiking.
  • XXL Power Transmitter
    • Extra large power transmitters in the heel with reduced weight for minimum friction and maximum centering for the lateral movement of the heel.
  • ISI Toe
    • Rubber stop pad
      • Boot tip is aligned/stopped when stepping in.
    • Wider step-in platform
      • Enlarged contact area for boot sole when stepping in.
    • Easier step-in
      • Toe piece snaps/clicks into the boot with a lot less force required.
  • Carbon Reinforced Pin Toe and Anti Ice Pads
    • Carbon fiber reinforced material for improved stiffness and super lightweight. Anti Ice Pads in the base of toe to prevent icing in critical areas.
• Details
  • Walking Modes
    • 0°, 7°, 13°
  • Vertical and Lateral Adjustable Release Function
    • Vertical and lateral individually adjustable release in the heel for improved release functionality.
  • Crampon Kingpin/Alpinist
    • Easy to install crampons for Kingpin and Alpinist available in the sizes 80mm, 90mm, 105mm, 120mm.
  • Active Length Compensation
    • Active length compensation in the heel allowing the heel to move back up to 4 mm when the ski is flexed.
• Specs
  • DIN Range
    • 5.0 - 10.0
  • Brake Width
    • 75 - 100 mm
    • 100 - 125 mm
  • Height
    • 21.5 mm
  • Adjustment Range
    • 25 mm
  • Binding Weight
    • 695 g (75-100 mm)
    • 695 g (100-125 mm)
  • Recommended Skier Weight
    • 30 - 105 kg (66 - 231 lb)
